Extra Long Jaw Stroke Power Chuck
These chucks are designed with performance of pulling clamp. Pull-Down type chuck (PA Type) is inside clamping chuck with completely pulling performace by chucking pins.Chucking pins locating at 3 position can reduce bending stress of clamping the work-piece each other. So,
Availabel Sizes are : 135mm, 165mm, 170mm, 200mm, 250mm, 315mm, 400mm
No of Jaws are 2 & 3 Jaws.
| MODEL / SPEC | A | B | C | D | E | F | G | PCD |
|---|---|---|---|---|---|---|---|---|
| 165 mm | 170 | 92 | 140 | 6 | 12 | 95 | M10X6 | 104.8 |
| 200 mm | 200 | 100 | 170 | 7 | 14/17 | 103 | M12X6 | 133.4 |
| 250 mm | 250 | 110 | 220 | 7 | 16/21 | 113 | M16X6 | 171.4 |
| 315 mm | 315 | 115 | 300 | 7 | 21 | 118 | M20X6 | 235 |
| Specification | Jaw Storke | Plunger storke | PCD | Max Speed | Weight(Kg) | Chucking(Min Dia) | Chucking(Max Dia) |
|---|---|---|---|---|---|---|---|
| 165 mm | 24 | 15 | 104.8 | 3600 | 16 | 24 | 170 |
| 200 mm | 32 | 20 | 133.4 | 3000 | 25 | 30 | 200 |
| 250 mm | 36 | 25 | 171.4 | 2400 | 45 | 53 | 250 |
| 315 mm | 40 | 30 | 235 | 2100 | 70 | 61 | 315 |

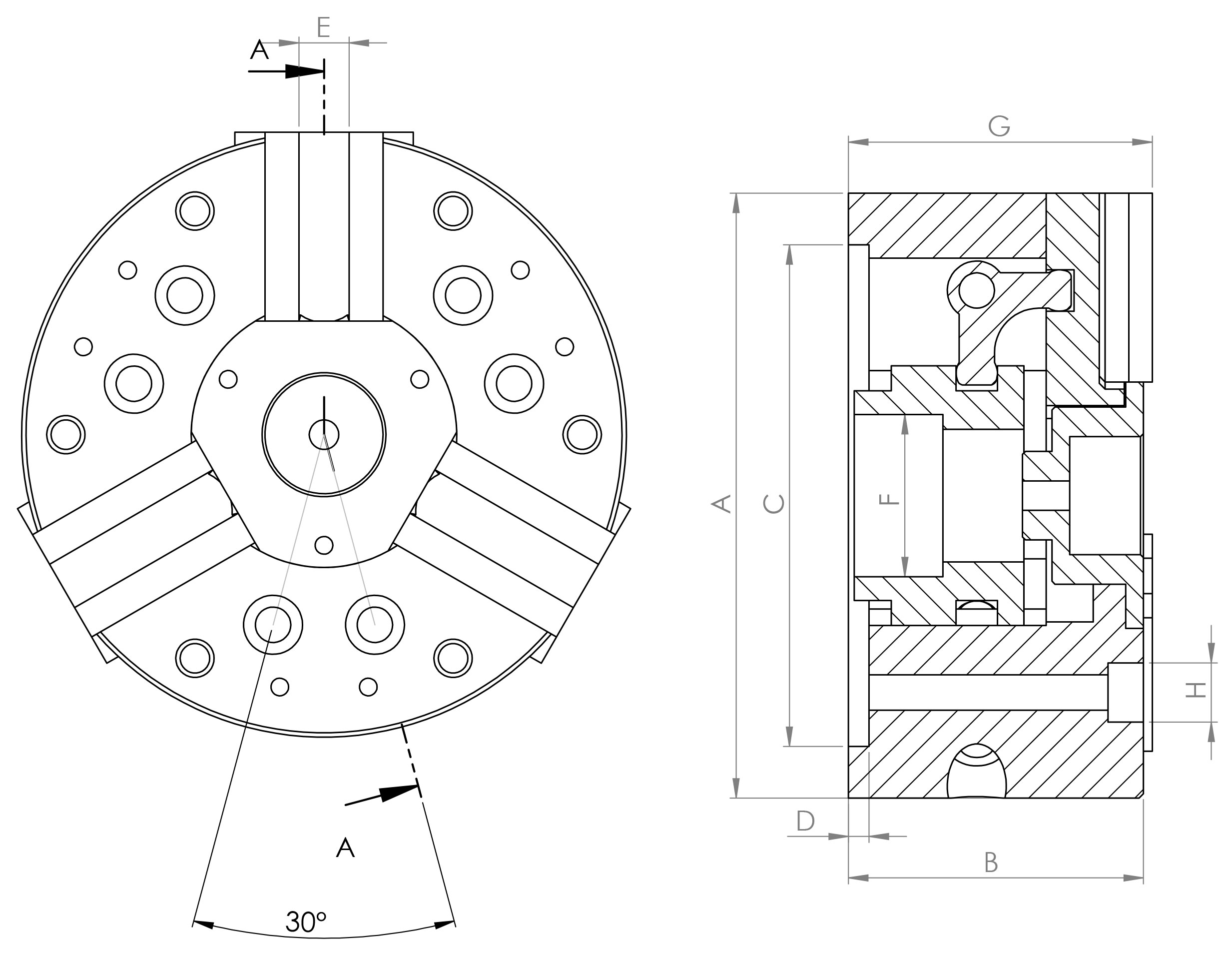

Product Drawing
