Revolving Center
| MODEL / SPEC | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| MT - 4 | 109 | 58.5 | 35 | 70 | 31.5 | 26 |
| MT - 5 | 138.3 | 70.6 | 40 | 90 | 45.5 | 60 |
| Specification | Max. Job (Kg) | Concentric Error (mm) | Max RPM |
|---|---|---|---|
| MT - 4 | 600 | 0.010 | 3400 |
| MT - 5 | 1500 | 0.010 | 2700 |

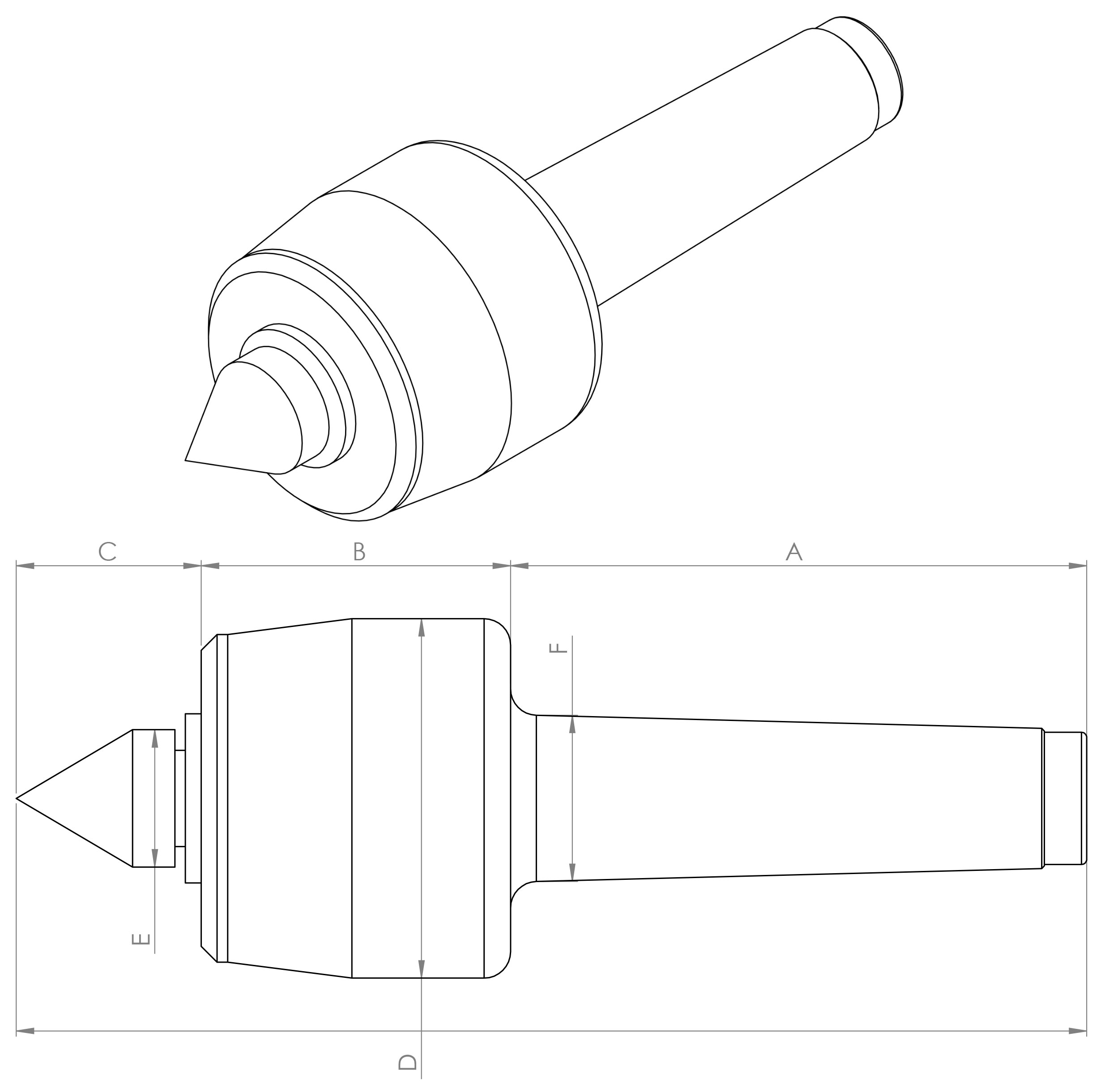

Product Drawing
| MODEL / SPEC | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| MT - 4 | 109 | 58.5 | 35 | 70 | 31.5 | 26 |
| MT - 5 | 138.3 | 70.6 | 40 | 90 | 45.5 | 60 |
| Specification | Max. Job (Kg) | Concentric Error (mm) | Max RPM |
|---|---|---|---|
| MT - 4 | 600 | 0.010 | 3400 |
| MT - 5 | 1500 | 0.010 | 2700 |
